A journey implementing Channel Binding on MSSQLClient.py
A few weeks ago my friend Zblurx pushed a PR on Impacket in which he implemented the Channel Binding Token computation based on code that was developped by lowercase_drm for the ldap3 library. This PR allowed any tool relying on the ldap3 library to be able to connect to the LDAP servers even if LDAP signing and LDAPS channel binding are enabled. Looking at the code I thought it would be easy to implement the same mechanism on others protocols such as MSSQL which I was already working on pushing PR’s on NetExec.
So I started implementing CBT for MSSQL, thinking it would only take a couple of hours… but it ended up taking two whole weeks! Along the way, I learned a bunch of interesting things, so I figured I’d write a short blog post to share the journey.
1/ About MSSQL Servers installation and configuration

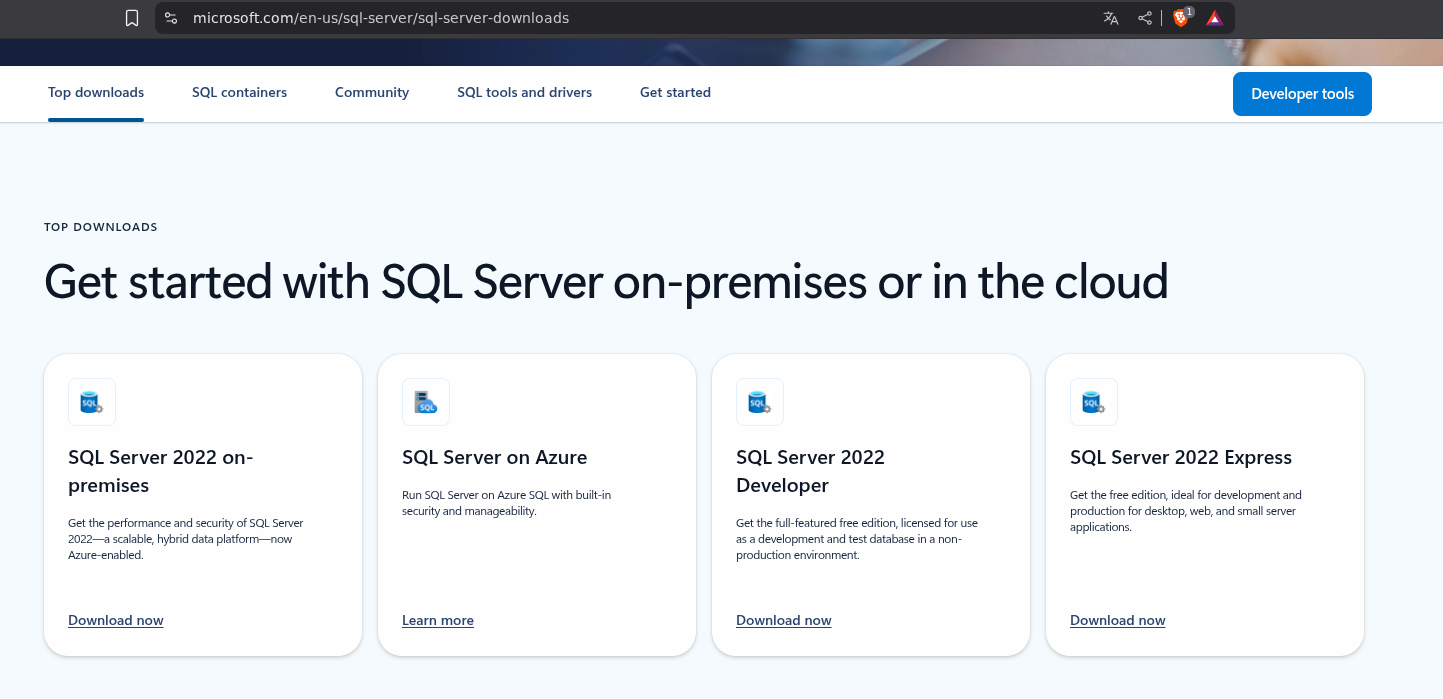

First things first, how do you install a MSSQL server ? Well Microsoft proposes multiple installers that you can get from the following page:
Some installers are for enterprises (and thus requires a licence), some are for testing purposes such as the “Express” one that is free. Once the installer run, you’ll have a fully working MSSQL database along with the SQLCMD.exe binary that is the default binary to use to manage the database. Yup, by default you won’t have a GUI tool so if you need one you can either install your favorite GUI tool (hello there DBearver) or the official tool from Microsot, SSMS.exe

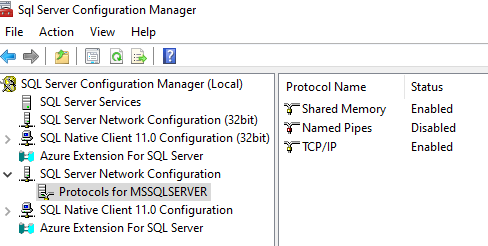

MSSQL being a new service, a dedicated MMC console is also available:
Multiple panels will let you configure pretty much whatever you want. For example, you can chose which account will run the database

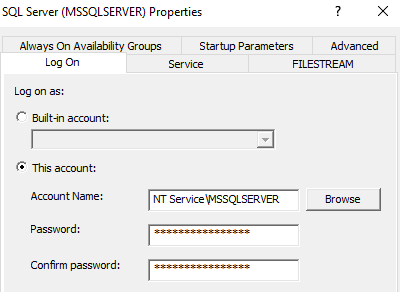

This account can be a local account (in my lab it’s the MSSQLSERVER virtual account), or a domain account (if and only if your database needs to query information over your Active Directory). Keep in mind that whether it is a local or a domain account, you must restrict the account’s privileges as much as you can to prevent lateral/horizontal mouvement if the MSSQL server was compromised.
Others options will let you configure whether you want your database to be exposed on a TCP/IP port or via a named pipe (or both):

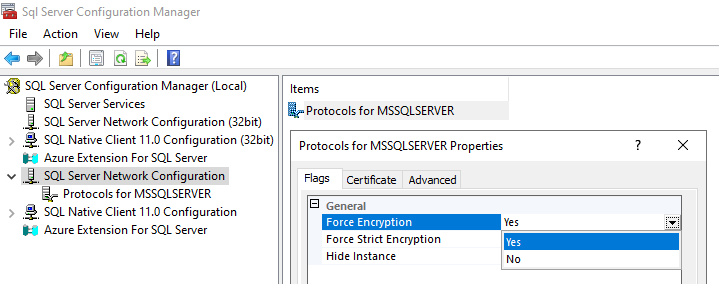

If you want your server to support TLS encryption:

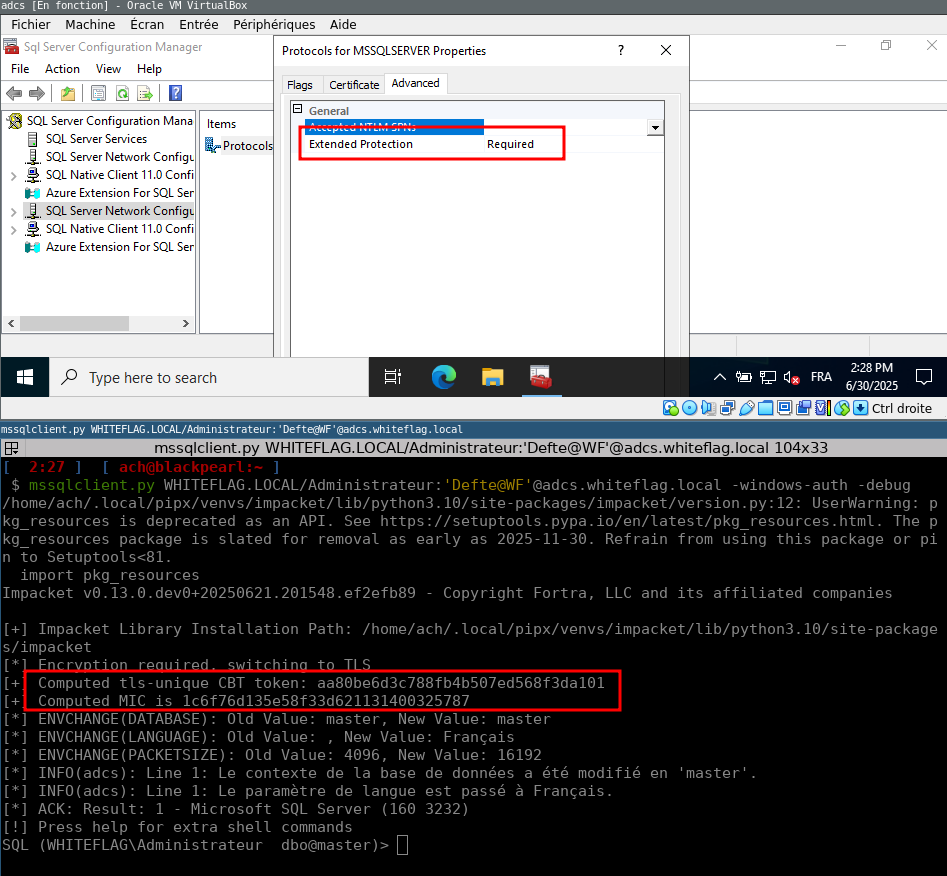

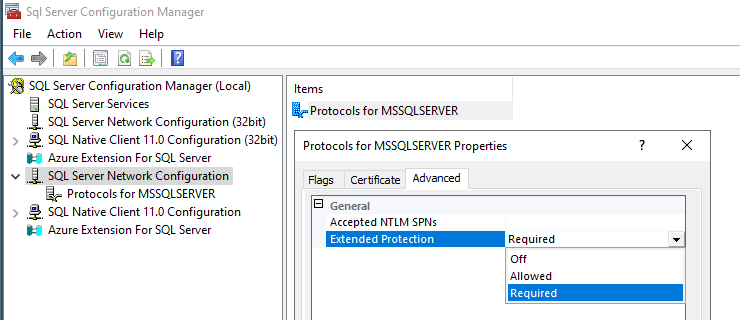

And if it should also support Extended Protection for Authentication (EPA) that, under the hood, means supporting Channel Binding Token:

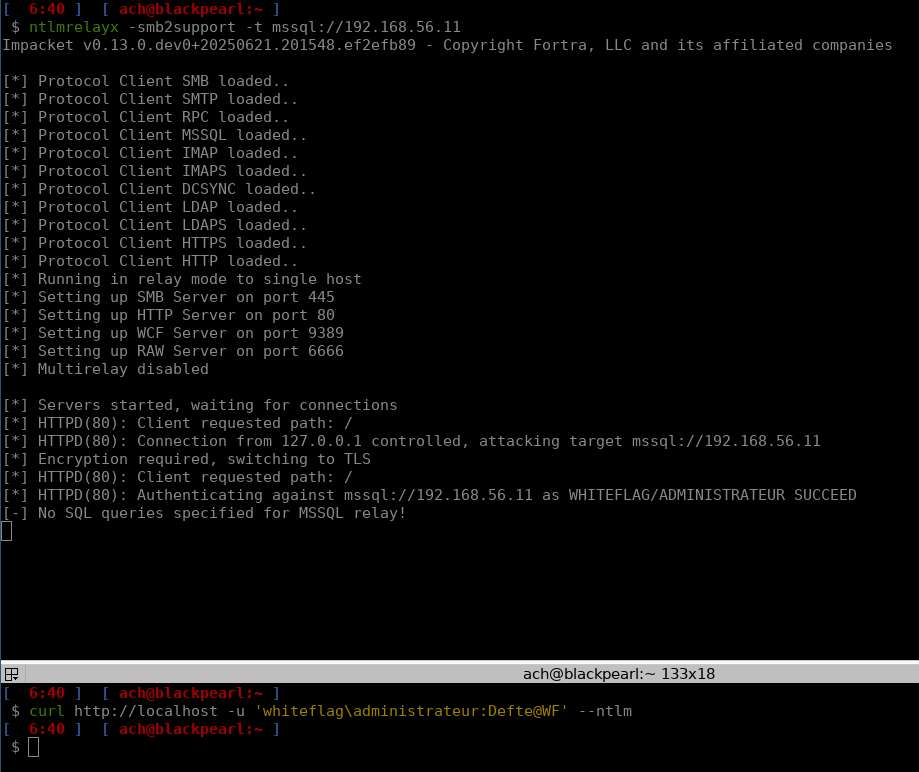

By default, a freshly installed MSSQL server is vulnerable to NTLM relay attacks as you can see below:
You probably already now that bu there are two mechanisms that can prevent these attacks:
- NTLM signing (on unencrypted communications) which will sign (compute a hash from the packet itsel) for each NTLM packet and add the signature in the Mechanism Integrity Code (MIC) field ;
- Channel Binding (on encrypted communications) which will compute a binding token based on the TLS session established between the client and the server and store that value in the Channel Binding value.
That being said, MSSQL doesn’t support signing on unencrypted communications as such, it is recommended to enforce both encryption and Extended Protection. These will effectively prevent any NTLM relay attacks:

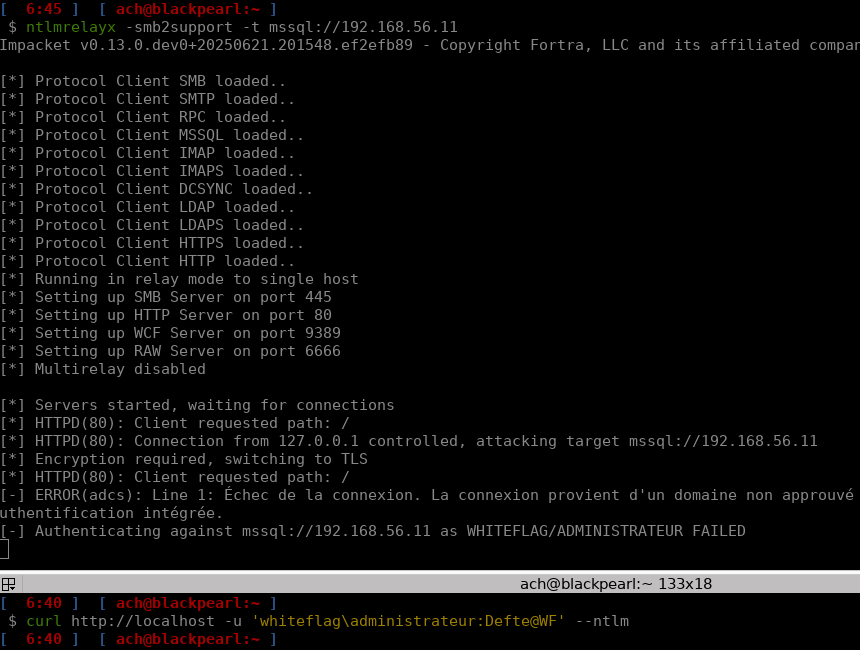

But keep in mind that if you do, you’ll have to use tooling that does support Channel Binding as well… And that’s not the case of the MSSQLClient.py script from the Impacket toolkit. Using it while having EPA enabled will get you that message:

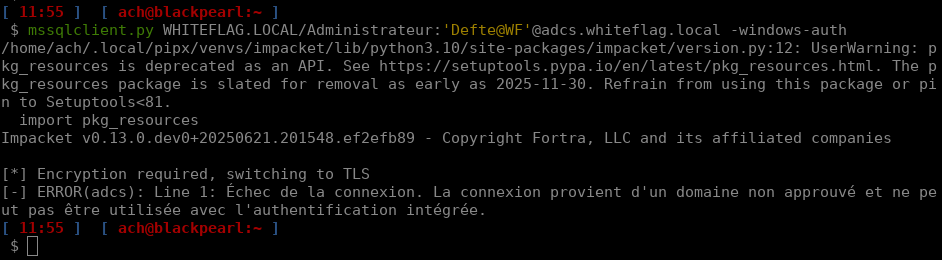

Connection error. The connection comes from a non approuved domain and cannot be used with integrated authentication
That is a generic error that basically says, your authentication failed and it does not actually tell us what’s wrong with it… Is it the username ? the password ? the channel binding token missing ? opefully, MSSQL server’s logs are much more detailed and can be found at the following path (adapt the <VERSION> depending of your MSSQL instance):
C:\\Program Files\\Microsoft SQL Server\\MSSQL<VERSION>.MSSQLSERVER\\MSSQL\\Log
You’ll see the following line:
Which translated says something like:
The binding token for that client is missing or does not match the established TLS link.
It is possible that the MSSQL service is under attack or that the client does not support extended protection.
Closing the connection. The SSPI binding token sent by the client does not match.
So we actually know that the Channel Binding token is missing or is invalid and we’ll have to compute it. Question is, how ?
2/ Integrating CBT into TDS.py

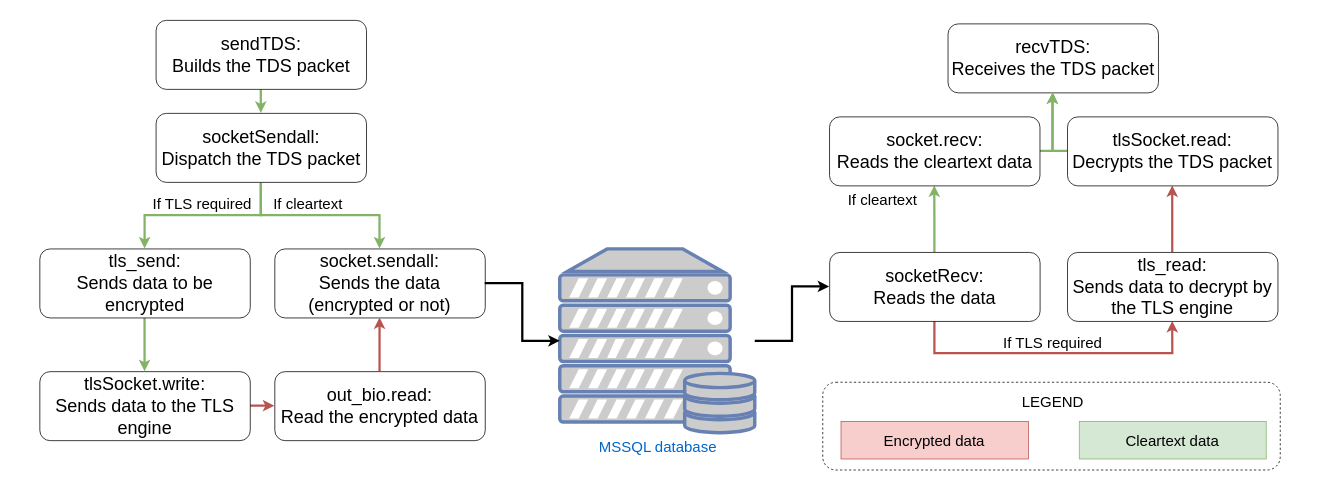

In the Impacket library, the MSSQL communication is handled via the TDS.py script. This one is huge, but looking at it we understand that MSSQL communications is not just about sending some credentials / commands to a server. Instead it relies on structured packets that are part of an application layer protocol called TDS. This protocol was initialy designed and developed by Sybase for their own SQL database engine but was alter bought by Microsoft for MSSQL. Looking at the code, we can see that two functions are used to respectively:
- Send TDS packets (sendTDS):
def sendTDS(self, packetType, data, packetID = 1):
if (len(data)-8) > self.packetSize:
remaining = data[self.packetSize-8:]
tds = TDSPacket()
tds['Type'] = packetType
tds['Status'] = TDS_STATUS_NORMAL
tds['PacketID'] = packetID
tds['Data'] = data[:self.packetSize-8]
self.socketSendall(tds.getData())
while len(remaining) > (self.packetSize-8):
packetID += 1
tds['PacketID'] = packetID
tds['Data'] = remaining[:self.packetSize-8]
self.socketSendall(tds.getData())
remaining = remaining[self.packetSize-8:]
data = remaining
packetID+=1
tds = TDSPacket()
tds['Type'] = packetType
tds['Status'] = TDS_STATUS_EOM
tds['PacketID'] = packetID
tds['Data'] = data
self.socketSendall(tds.getData())
- Receive TDS packets sent by the MSSQL server:
def recvTDS(self, packetSize = None):
if packetSize is None:
packetSize = self.packetSize
data = b""
while data == b"":
data = self.socketRecv(packetSize)
packet = TDSPacket(data)
status = packet["Status"]
packetLen = packet["Length"]-8
while packetLen > len(packet["Data"]):
data = self.socketRecv(packetSize)
packet["Data"] += data
remaining = None
if packetLen < len(packet["Data"]):
remaining = packet["Data"][packetLen:]
packet["Data"] = packet["Data"][:packetLen]
while status != TDS_STATUS_EOM:
if remaining is not None:
tmpPacket = TDSPacket(remaining)
else:
tmpPacket = TDSPacket(self.socketRecv(packetSize))
packetLen = tmpPacket["Length"] - 8
while packetLen > len(tmpPacket["Data"]):
data = self.socketRecv(packetSize)
tmpPacket["Data"] += data
remaining = None
if packetLen < len(tmpPacket["Data"]):
remaining = tmpPacket["Data"][packetLen:]
tmpPacket["Data"] = tmpPacket["Data"][:packetLen]
status = tmpPacket["Status"]
packet["Data"] += tmpPacket["Data"]
packet["Length"] += tmpPacket["Length"] - 8
return packet
Both these functions rely on the TDSPacket structure defined as:
class TDSPacket(Structure):
structure = (
('Type', '<B'), # The type of data that is going to be sent
('Status', '<B=1'), # The status (which can be a simple data packet or, for example, a reset connection one)
('Length', '>H=8+len(Data)'), # The size of the data that is sent
('SPID', '>H=0'), # This value is not used
('PacketID', '<B=0'), # The packet ID that is used to rebuild the entire data if multiple TDS packets are sent
('Window', '<B=0'), # This one is not used either
('Data', ':'), # The actual data that is sent to the MSSQL server
)
This TDS structure makes sending data to a MSSQL server quite easy actually, all you need to do is to compute the data you want to send to the server and specify the length of that data in the respective fields.
One other interesting thing in the TDS.py script is the preLogin function. As you can see this function computes a PRE_LOGIN packet in which the client specifies a few informations such as its MSSQL version and the Encryption field which defines if it supports TLS encryption or not:
def preLogin(self):
prelogin = TDS_PRELOGIN()
prelogin['Version'] = b"\x08\x00\x01\x55\x00\x00"
prelogin['Encryption'] = TDS_ENCRYPT_OFF
prelogin['ThreadID'] = struct.pack('<L',random.randint(0,65535))
prelogin['Instance'] = b'MSSQLServer\x00'
self.sendTDS(TDS_PRE_LOGIN, prelogin.getData(), 0)
tds = self.recvTDS()
return TDS_PRELOGIN(tds['Data'])
Encryption’s field values can be:
# Encryption is available but off.
TDS_ENCRYPT_OFF = 0
# Encryption is available and on.
TDS_ENCRYPT_ON = 1
# Encryption is not available.
TDS_ENCRYPT_NOT_SUP = 2
# Encryption is required.
TDS_ENCRYPT_REQ = 3
# Certificate based authentication
TDS_ENCRYPT_CLIENT_CERT = 80
These values imply that TLS can be not required at all which is quite interesting. Scrolling down, you’ll find the login function:
def login(self, database, username, password='', domain='', hashes = None, useWindowsAuth = False):
if hashes is not None:
lmhash, nthash = hashes.split(':')
lmhash = binascii.a2b_hex(lmhash)
nthash = binascii.a2b_hex(nthash)
else:
lmhash = ''
nthash = ''
resp = self.preLogin()
# Test this!
if resp['Encryption'] == TDS_ENCRYPT_REQ or resp['Encryption'] == TDS_ENCRYPT_OFF:
LOG.info("Encryption required, switching to TLS")
# Switching to TLS now
ctx = SSL.Context(SSL.TLS_METHOD)
ctx.set_cipher_list('ALL:@SECLEVEL=0'.encode('utf-8'))
tls = SSL.Connection(ctx,None)
tls.set_connect_state()
while True:
try:
tls.do_handshake()
except SSL.WantReadError:
data = tls.bio_read(4096)
self.sendTDS(TDS_PRE_LOGIN, data,0)
tds = self.recvTDS()
tls.bio_write(tds['Data'])
else:
break
As you can see, before any login occurs, the pre login packet is sent. From the response of the server (specifically the Encryption field), the client will create a TLS context and handle the TLS handshake on its own. Until I got into that research subject I had never seen that behaviour until I realized that this mechanism, the one responsible for switching from a non TLS communication to a TLS protected one is the actual STARTTLS mechanism that is supported by some protocols such as SMTP and LDAP (for example). For the moment we won’t mind abuot it but in a later part of this blogpost you’ll see it will be a pain in the ass ahahah!
Looking at the rest of the login function we will see the following:
# First a TDS authentication packet is instantiated
login = TDS_LOGIN()
# [...] A bunch of variables are set
# If the Windows Active Directory authentication is used then
if useWindowsAuth is True:
login['OptionFlags2'] |= TDS_INTEGRATED_SECURITY_ON
# We obtain a NTLMSSP_NEGOTIATE message
auth = ntlm.getNTLMSSPType1('','')
login['SSPI'] = auth.getData()
login['Length'] = len(login.getData())
# We send the NTLMSSP_NEGOTIATE message to the SQL server
self.sendTDS(TDS_LOGIN7, login.getData())
# We receive the response (the NTLMSSP_CHALLENGE) message
tds = self.recvTDS()
# From which we extract the server challenge
serverChallenge = tds['Data'][3:]
# That we use to compute the NTLMSSP_AUTHENTICATE message that we'll use to actually authenticate
type3, exportedSessionKey = ntlm.getNTLMSSPType3(auth, serverChallenge, username, password, domain, lmhash, nthash)
# We send the packet
self.sendTDS(TDS_SSPI, type3.getData())
# Receive the response from the server
tds = self.recvTDS()
self.replies = self.parseReply(tds['Data'])
# And if we get a TDS_LOGINACK_TOKEN response then we are authenticated and get access
if TDS_LOGINACK_TOKEN in self.replies:
return True
# Else we don't
else:
return False
Nothing fancy, that’s a standard NTLM authentication. Now looking at Zblurx’s code on the LDAP protocol we will see that the following function, which is used to compute the Channel Binding Token, is added:
def generateChannelBindingValue(self):
# From: https://github.com/ly4k/ldap3/commit/87f5760e5a68c2f91eac8ba375f4ea3928e2b9e0#diff-c782b790cfa0a948362bf47d72df8ddd6daac12e5757afd9d371d89385b27ef6R1383
from hashlib import md5
# Ugly but effective, to get the digest of the X509 DER in bytes
peer_cert_digest_str = self._socket.get_peer_certificate().digest('sha256').decode()
peer_cert_digest_bytes = bytes.fromhex(peer_cert_digest_str.replace(':', ''))
channel_binding_struct = b''
initiator_address = b'\x00'*8
acceptor_address = b'\x00'*8
# https://datatracker.ietf.org/doc/html/rfc5929#section-4

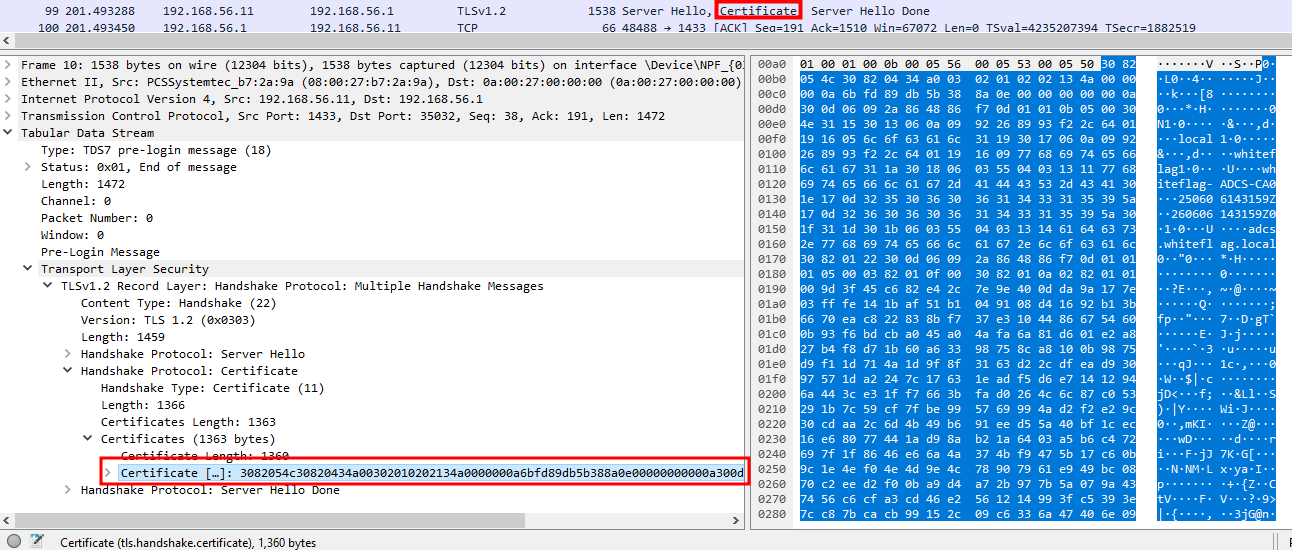

application_data_raw = b'tls-server-end-point:' + peer_cert_digest_bytes
len_application_data = len(application_data_raw).to_bytes(4, byteorder='little', signed = False)
application_data = len_application_data
application_data += application_data_raw
channel_binding_struct += initiator_address
channel_binding_struct += acceptor_address
channel_binding_struct += application_data
return md5(channel_binding_struct).digest()
And that the ntlm.getNTLMSSPType3 function is modified so that it includes the CBT as well as the MIC value:
# channel binding
channel_binding_value = b''
if self._SSL:
channel_binding_value = self.generateChannelBindingValue()
# NTLM Auth
type3, exportedSessionKey = getNTLMSSPType3(
negotiate,
type2,
user,
password,
domain,
lmhash,
nthash,
service='ldap',
version=self.version,
use_ntlmv2=True,
channel_binding_value=channel_binding_value
)
# calculate MIC
newmic = hmac_md5(exportedSessionKey, negotiate.getData() + NTLMAuthChallenge(type2).getData() + type3.getData())
type3['MIC'] = newmic
Stupidly enough I thought copy/pasting these two snippets would be enough but launching mssqlclient.py I realized that…
It was not working. I guess we’ll have to get our hands dirty right ? Question is, how do we get to know what’s going wrong ? Well hopefully we know for sure that there is at least one official tool from the MSSQL toolkit that does support authentication with Channel Binding: SQLCMD.exe. But it communicates over an encrypted TLS tunnel:
So the first thing we’ll need to do is to downgrade our Windows Server TLS configuration so that we can actually see what’s going through it.
3/ Downgrading Windows securities

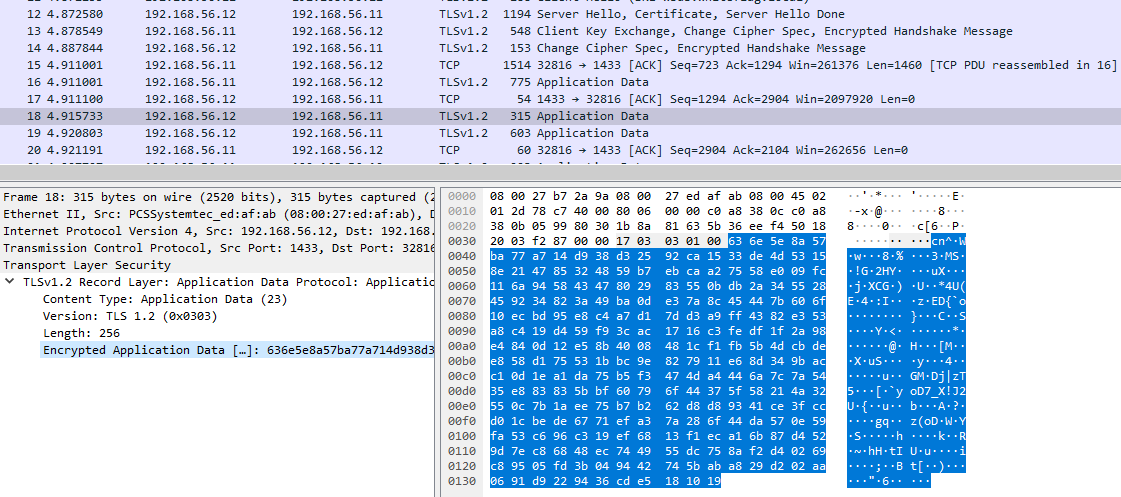

There are two things that prevent us from inspecting the TLS trafic in which the NTLM authentication occurs:
- By default MSSQL servers are configured to rely on a self-signed certificate for which we can’t extract the private key ;
- MSSQL servers prefer TLS 1.3 which relies on the Diffie-Hellman algorithm to exchange encryption keys meaning even if we can extract the private key, we won’t be able to decrypt TLS communication.
So let’s disable these to begin with!
- Configuring a real TLS certificate with exportable private key:

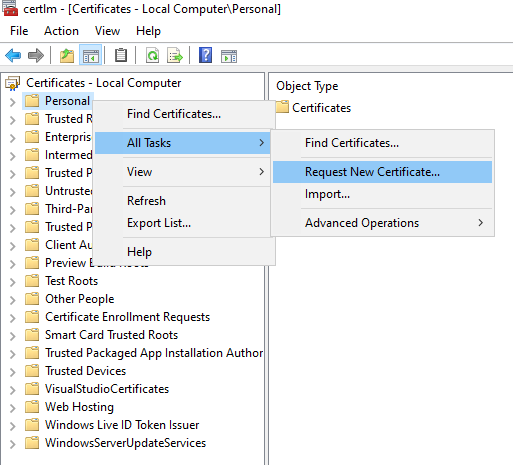

When dealing with certificates in an Active Directory environnement, the easiest way to make sure that everything works correctly is to rely on the ADCS service. Thus you’ll need to install and configure the service with a valid Certificate Authority. Once done, using the certlm (certLocalMachine in opposite with certmgr which is related to your current user) you’ll be able to request the certificate right-clicking on “Personal” > “Request New Certificate”:
Click on next until you get the following panel that will allow requesting specific options about the private key:

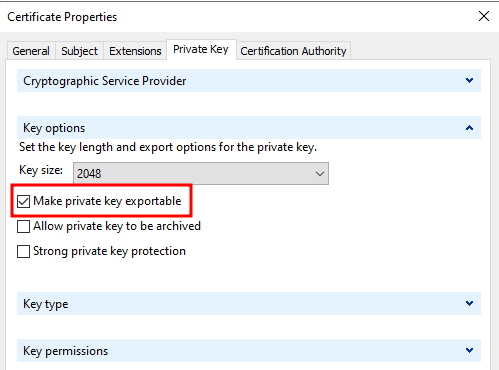

This one is very important because that is where you’ll state that the private key bounded to that certificate can be exported:

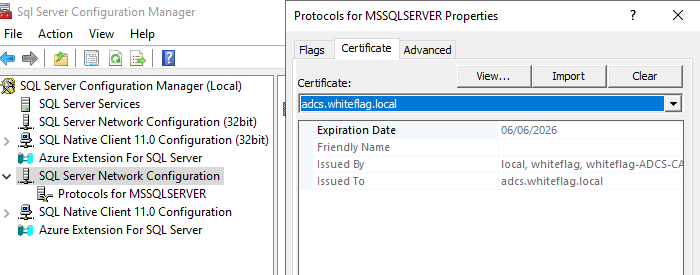

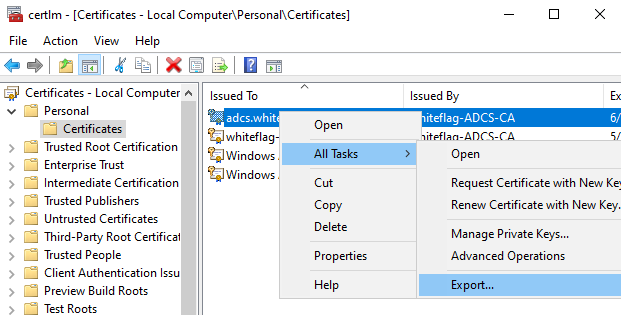

Once the certificate obtained, you can configure your MSSQL server to use it via the import boutton on the MSSQL MMC:

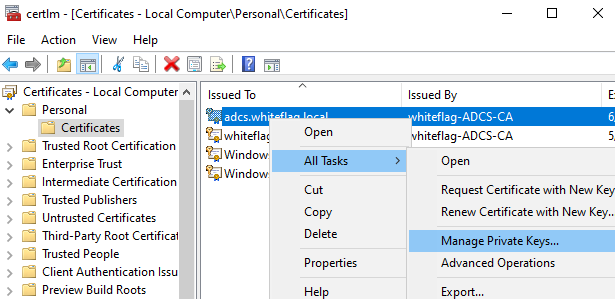

Finally you’ll have to make sure that the private key can be read by the account running the MSSQL server. To do so, open certlm again, right click on the certificate we just requested, click on “All Tasks” then “Manage Private Keys”:

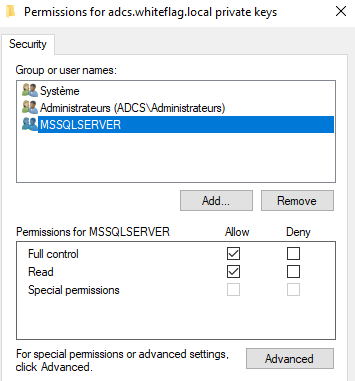

And now make sure the user that is running the MSSQL database can read it:
Once done you can restart your MSSQL server so that it issues the certificate. You’ll also be able to export the private key right clicking on the certificate, then “All Tasks” and finally “Export”:

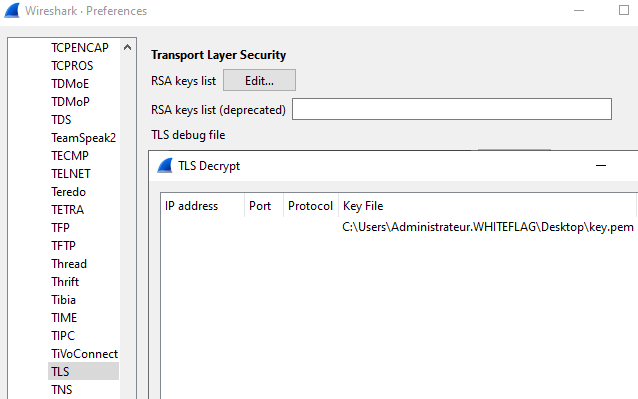

Last step is to configure Wireshark so that it uses that key to decrypt TLS trafic (Edit > Preferences > TLS):
Wireshark is ready to decrypt packets over the network, let’s disable TLS 1.3.
- Disabling TLS 1.3:
TLS 1.3 is really much more secured than any others TLS version for a simple reason: it relies on Diffie-Hellman to exchange the keys used to encrypt/decrypt the communications. That algorithm is entirely different from the usual RSA one because encryption/decryption keys are computed during the TLS handshake. That means that even if an attacker gets access a certificate’s private key, he won’t be able to decrypt actual and older messages.
When it comes to privacy, that is actually great but when you want to introspect TLS messages it makes our life much harder. That’s why we’ll simply disable TLS 1.3 on our testing server. Now that looks complicated but it’s actually quite easy to do. Since TLS 1.3 doesn’t support cyphers that do not rely on the Diffie-Hellman exchange key protocol, we’ll just have to configure our server to only support RSA ones. This can be done modifying the following GPO:

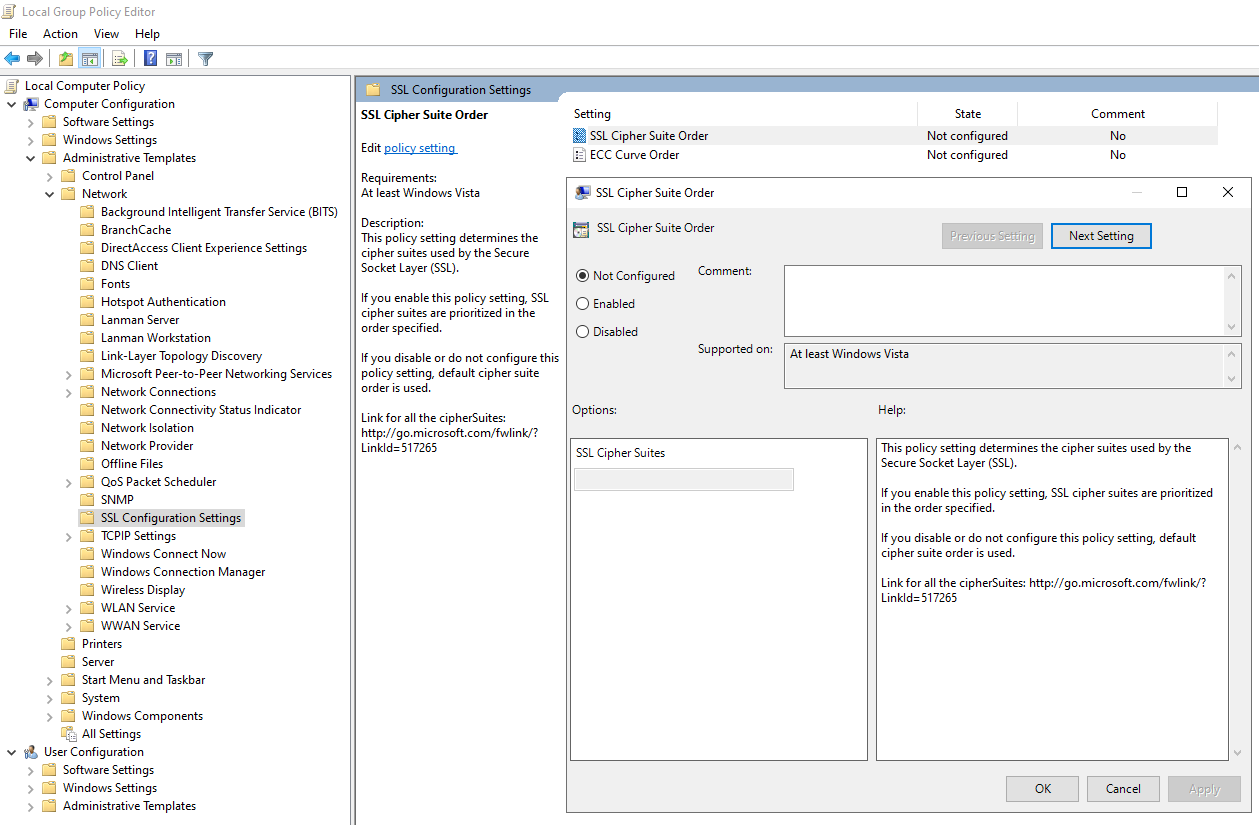

Computer Configuration > Administrative Templates > Network > SSL Configuration Settings > SSL Cipher Suite Order
And providing TLS cyphers that only work with RSA such as the following ones:
TLS_RSA_WITH_AES_256_CBC_SHA256,TLS_RSA_WITH_AES_128_CBC_SHA256
Apply the updates via gpupdate:
gpupdate /force

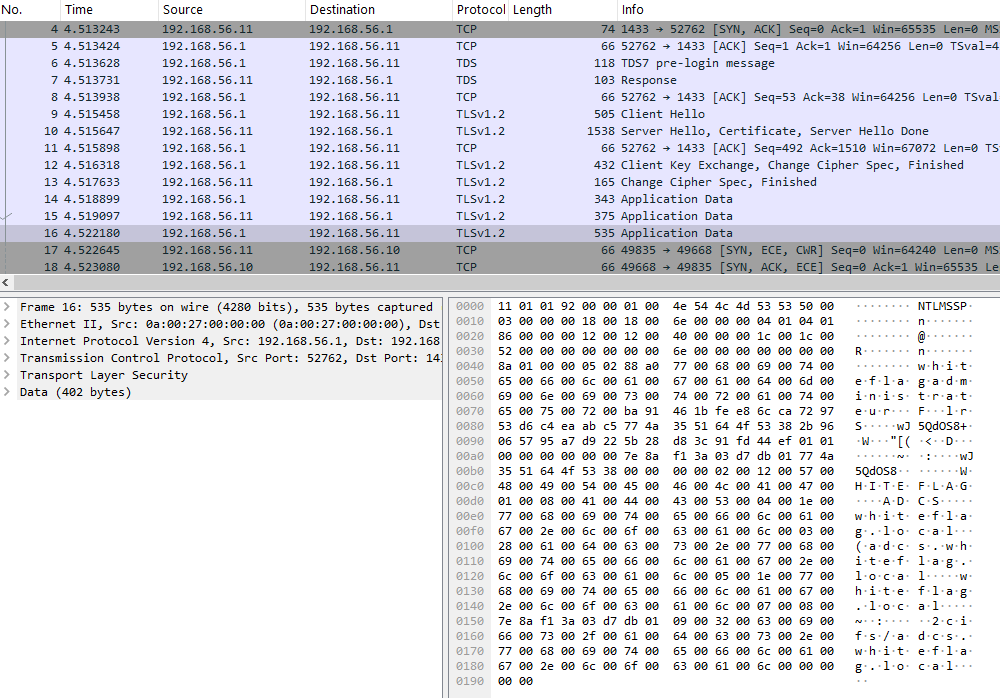

And here are our cleartext NTLM authentication messages:
4/ About NTLM, Channel Binding and MIC
At this point we are able to obtain the cleartext NTLM messages used to authenticate ourselves from a legitimate tool (SQLCMD.exe) that does support Channel Binding. My idea was to inspect these packets in order to detect what was missing. Normally, Wireshark is able to decompose a NTLM packet displaying all the values but it doesn’t work in our case since the data is embedded inside the “Data” field in the TDS packet:

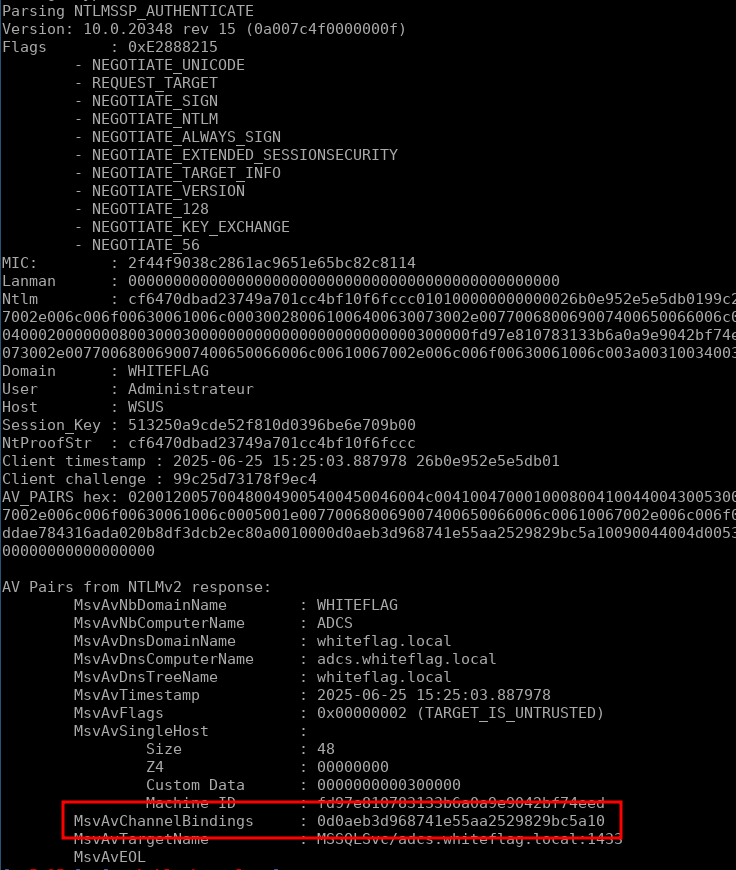

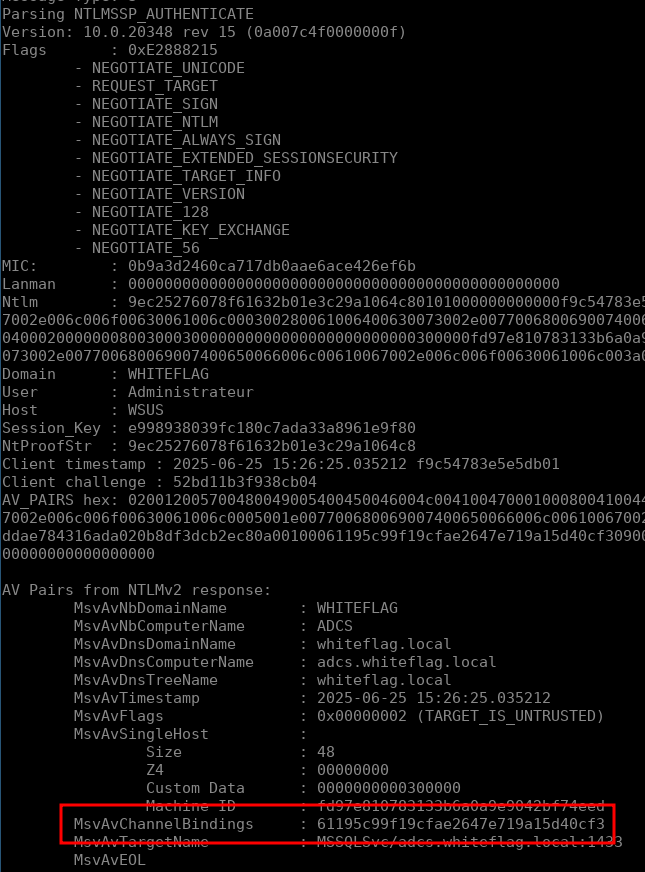

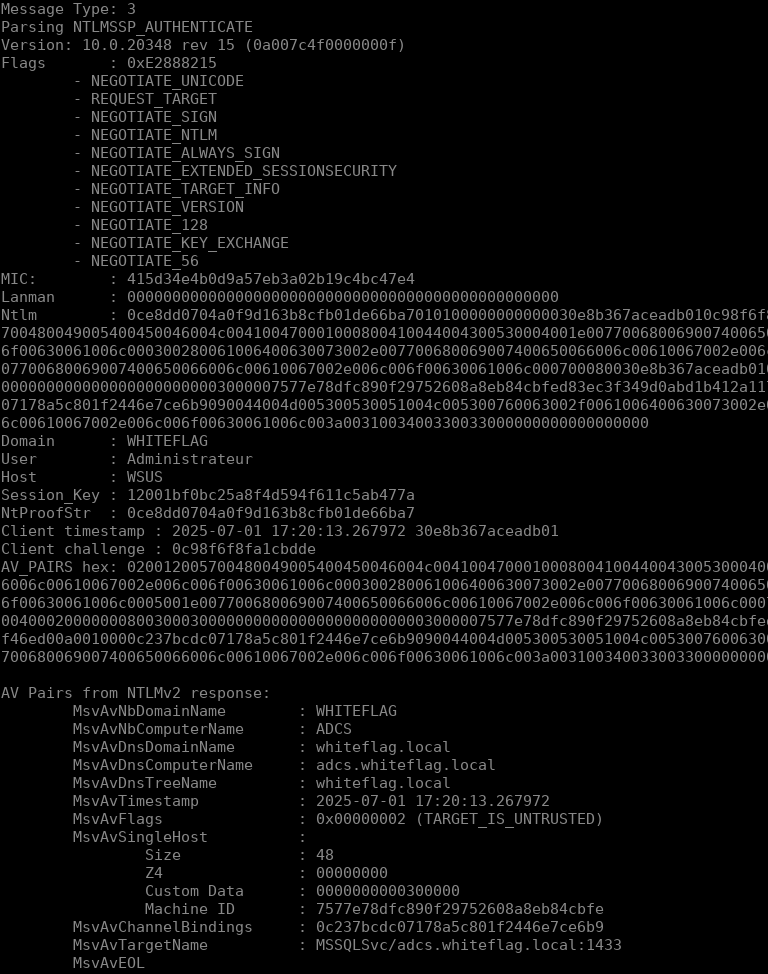

That lead me into developping a NTLM parser that can extract all the values from a hexadecimal string passed as an argument:
import binascii
import struct
import datetime
from sys import argv
# NTLM Flags
NTLM_FLAGS = {
0x00000001: "NEGOTIATE_UNICODE",
0x00000002: "NEGOTIATE_OEM",
0x00000004: "REQUEST_TARGET",
0x00000010: "NEGOTIATE_SIGN",
0x00000020: "NEGOTIATE_SEAL",
0x00000040: "NEGOTIATE_DATAGRAM",
0x00000080: "NEGOTIATE_LM_KEY",
0x00000200: "NEGOTIATE_NTLM",
0x00000800: "NEGOTIATE_ANONYMOUS",
0x00001000: "NEGOTIATE_OEM_DOMAIN_SUPPLIED",
0x00002000: "NEGOTIATE_OEM_WORKSTATION_SUPPLIED",
0x00008000: "NEGOTIATE_ALWAYS_SIGN",
0x00010000: "TARGET_TYPE_DOMAIN",
0x00020000: "TARGET_TYPE_SERVER",
0x00040000: "TARGET_TYPE_SHARE",
0x00080000: "NEGOTIATE_EXTENDED_SESSIONSECURITY",
0x00100000: "NEGOTIATE_IDENTIFY",
0x00400000: "REQUEST_NON_NT_SESSION_KEY",
0x00800000: "NEGOTIATE_TARGET_INFO",
0x02000000: "NEGOTIATE_VERSION",
0x20000000: "NEGOTIATE_128",
0x40000000: "NEGOTIATE_KEY_EXCHANGE",
0x80000000: "NEGOTIATE_56",
}
# AV_PAIRS Flags
AV_IDS = {
0x00: "MsvAvEOL",
0x01: "MsvAvNbComputerName",
0x02: "MsvAvNbDomainName",
0x03: "MsvAvDnsComputerName",
0x04: "MsvAvDnsDomainName",
0x05: "MsvAvDnsTreeName",
0x06: "MsvAvFlags",
0x07: "MsvAvTimestamp",
0x08: "MsvAvSingleHost",
0x09: "MsvAvTargetName",
0x0A: "MsvAvChannelBindings",
0x0B: "MsvAvTargetFlags",
0x0C: "MsvAvServicePrincipalName",
0x0D: "MsvAvTicketHint",
0x0E: "MsvAvTicketServerName",
0x0F: "MsvAvTicketRealmName",
0x10: "MsvAvTargetRestriction",
0x11: "MsvAvTargetCapability",
0x12: "MsvAvClientClaims",
0x13: "MsvAvDeviceClaims",
0x14: "MsvAvDeviceId",
0x15: "MsvAvAccountId",
0x16: "MsvAvIntegrity",
}
def decode_utf16le(value):
try:
return value.decode('utf-16le')
except Exception:
return value.hex()
def parse_av_pairs(blob):
pos = 0
print("\nAV Pairs from NTLMv2 response:")
while pos + 4 <= len(blob):
av_id = struct.unpack("<H", blob[pos:pos + 2])[0]
av_len = struct.unpack("<H", blob[pos + 2:pos + 4])[0]
pos += 4
if av_id == 0x00:
print(f"\tMsvAvEOL")
break
value = blob[pos:pos + av_len]
name = AV_IDS.get(av_id, f"Unknown_AV_ID_{av_id}")
display_value = ""
if av_id == 0x07 and len(value) == 8: # Timestamp
timestamp = struct.unpack("<Q", value)[0]
dt = datetime.datetime(1601, 1, 1) + datetime.timedelta(microseconds=timestamp / 10)
display_value = str(dt)
elif av_id == 0x06 and len(value) == 4: # MsvAvFlags
flags = struct.unpack("<I", value)[0]
flag_map = {
0x00000001: "MIC_PRESENT",
0x00000002: "TARGET_IS_UNTRUSTED",
0x00000004: "CHANNEL_BINDINGS_PRESENT",
0x00000010: "CLAIMS_SUPPORTED",
0x00000020: "SPN_CHECK_REQUIRED",
0x00000100: "CUSTOM_AV_PAIRS_PRESENT",
}
active_flags = [desc for bit, desc in flag_map.items() if flags & bit]
display_value = f"0x{flags:08X} ({', '.join(active_flags) if active_flags else 'None'})"
elif av_id == 0x08 and len(value) >= 48: # MsvAvSingleHost
machine_id = value[16:32]
display_value = (
f"\n\t\tSize : {struct.unpack('<I', value[0:4])[0]}\n"
f"\t\tZ4 : {value[4:8].hex()}\n"
f"\t\tCustom Data : {value[8:16].hex()}\n"
f"\t\tMachine ID : {machine_id.hex()}"
)
elif av_id == 0x0A: # Channel Bindings
display_value = value.hex()
else:
display_value = decode_utf16le(value)
print(f"\t{name:<25}: {display_value}")
pos += av_len
def parse_ntlm_message(hex_data):
data = binascii.unhexlify(hex_data)
def unpack_field(fmt, offset):
size = struct.calcsize(fmt)
return struct.unpack(fmt, data[offset:offset + size])[0], offset + size
print(f"\nHex NTLM Message: {hex_data}")
offset = 8
message_type, offset = unpack_field('<L', offset)
print(f"Message Type: {message_type}")
if message_type == 1:
print("Parsing NTLMSSP_NEGOTIATE")
negotiate_flags = struct.unpack("<I", data[12:16])[0]
for bit, meaning in NTLM_FLAGS.items():
if negotiate_flags & bit:
print(f"\t- {meaning}")
domain_name_length, _, domain_buffer = struct.unpack("<HHI", data[16:24])
try:
domain = data[domain_buffer:domain_buffer+domain_name_length].decode('utf-16le')
except Exception:
domain = data[domain_buffer:domain_buffer+domain_name_length].hex()
print(f"\tDomain name: {domain}")
workstation_name_length, _, workstation_buffer = struct.unpack("<HHI", data[24:32])
try:
workstation = data[workstation_buffer:workstation_buffer+workstation_name_length].decode('utf-16le')
except Exception:
workstation = data[workstation_buffer:workstation_buffer+workstation_name_length].hex()
print(f"\tWorkstation: {workstation}")
if negotiate_flags & 0x02000000 and len(data) >= 40:
version_major = data[32]
version_minor = data[33]
version_build = struct.unpack("<H", data[34:36])[0]
ntlm_revision = data[39]
print(f"\tVersion: {version_major}.{version_minor} {version_build} {ntlm_revision}")
if message_type == 2:
print("Parsing NTLMSSP_CHALLENGE")
target_name_len, _, target_name_offset = struct.unpack("<HHI", data[12:20])
negotiate_flags = struct.unpack("<I", data[20:24])[0]
print(f"\tNegotiate Flags: 0x{negotiate_flags:08x}:")
for bit, meaning in NTLM_FLAGS.items():
if negotiate_flags & bit:
print(f"\t- {meaning}")
server_challenge = data[24:32]
print(f"\tServer Challenge: {server_challenge.hex()}")
reserved = data[32:40]
print(f"\tReserved: {reserved.hex()}")
target_info_len, _, target_info_offset = struct.unpack("<HHI", data[40:48])
target_name_bytes = data[target_name_offset:target_name_offset+target_name_len]
try:
target_name = target_name_bytes.decode('utf-16le')
except Exception:
target_name = target_name_bytes.hex()
print(f"\tTarget Name: {target_name}")
target_info_bytes = data[target_info_offset:target_info_offset+target_info_len]
print(f"\tTarget Info (AV Pairs):")
parse_av_pairs(target_info_bytes)
if message_type == 3:
print("Parsing NTLMSSP_AUTHENTICATE")
fields = {}
names = ["lanman", "ntlm", "domain", "user", "host", "session_key"]
for name in names:
length, offset = unpack_field('<H', offset)
max_length, offset = unpack_field('<H', offset)
ptr, offset = unpack_field('<L', offset)
fields[name] = {'length': length, 'offset': ptr}
flags, offset = unpack_field('<L', offset)
if flags & 0x02000000:
version = data[offset:offset + 8]
if len(version) >= 8:
major, minor = version[0], version[1]
build = struct.unpack("<H", version[2:4])[0]
rev = version[7]
print(f"Version: {major}.{minor}.{build} rev {rev} ({version.hex()})")
offset += 8
mic = None
if flags & 0x00000002 == 0:
mic = data[offset:offset + 16]
offset += 16
for name in names:
field = fields[name]
field['value'] = data[field['offset']:field['offset'] + field['length']]
print(f"Flags : 0x{flags:08X}")
for bit, meaning in NTLM_FLAGS.items():
if flags & bit:
print(f"\t- {meaning}")
if mic:
print(f"MIC: : {mic.hex()}")
for name in names:
raw = fields[name]['value']
val = decode_utf16le(raw)
if name in ["session_key", "lanman"]:
print(f"{name.title():<12}: {raw.hex() if raw else '(not present)'}")
else:
print(f"{name.title():<12}: {val}")
ntlm_value = fields['ntlm']['value']
if len(ntlm_value) > 16:
ntproofstr = ntlm_value[:16]
print(f"NtProofStr : {ntproofstr.hex()}")
else:
print("NtProofStr not present (NTLM challenge response too short).")
if len(ntlm_value) > 40:
timestamp_bytes = ntlm_value[24:32]
timestamp = struct.unpack("<Q", timestamp_bytes)[0]
timestamp_str = str(datetime.datetime(1601, 1, 1) + datetime.timedelta(microseconds=timestamp / 10))
client_challenge = ntlm_value[32:40]
print(f"Client timestamp : {timestamp_str} {timestamp_bytes.hex()}")
print(f"Client challenge : {client_challenge.hex()}")
else:
print("Client challenge not present (NTLM challenge response too short).")
if len(ntlm_value) > 44:
# This is the av_pair preambule in NTLMv2 response, av_pairs starts right after that
av_sig = b'\x01\x01\x00\x00\x00\x00\x00\x00'
sig_index = ntlm_value.find(av_sig)
if sig_index == -1:
print("\nAV_PAIRS signature not found in NTLMv2 blob.")
return
blob = ntlm_value[sig_index:]
if len(blob) < 28:
print("\nNTLMv2 blob too short to contain timestamp and challenge.")
return
av_pairs_data = blob[28:]
print(f"AV_PAIRS hex: {av_pairs_data.hex()}")
parse_av_pairs(av_pairs_data)
else:
print("\nAV_PAIRS not found or NTLMv2 response too short.")
if __name__ == "__main__":
if len(argv) < 2:
print("Usage: python ntlm_message_parser.py <hex_ntlm_message>")
else:
parse_ntlm_message(argv[1])
Using this script we’ll be able to dissect the three messages used by SQLCMD.exe to authenticate to the remote MSSQL server with Channel Binding but diving into the NTLM internals would make the blogpost too long and since it’s been explained very well in multiples blogposts I’ll just skip that part. Let’s jump directly to the most important part, the NTLMSSP_Authenticate packets. Running our NTLM parser on a NTLMSSP_Authenticate packet sent by SQLCMD.exe we get the following output:
As you can see this message contains quite a lot of informations but most importantly, it contains:
- The NTLM respones (ntlm field) in which we’ll find the encrypted challenge (that’s actually called the NtProofStr) ;
- The session key that will be used to sign packets if signing is activated ;
- The MIC that is the signature of the actual NTLM packet.
Looking at the AV_PAIRS we’ll see that, as expected, the Channel Binding Token is supplied:
MsvAvChannelBindings : 0c237bcdc07178a5c801f2446e7ce6b9
For a couple of days I struggled understanding what was missing since the code we wrote at the beginning of this blogpost should have been computing the correct CBT value hashing the TLS certificate of the server and concatenating to the “tls-server-end-point” string. I wrote standalone python script to check that value, even bash scripts but it wasn’t working… Until I realized that there was something really wrong. Let’s take a look at two different legitimate authentications from SQLCMD.exe:
- First authentication:
- Second authentication:
That’s weird, the CBT value is different but it shouldn’t be since we are computing it from a certificate that is the same (the one we generated before). That means that somehow, the CBT is not computed from the TLS certificate of the MSSQL server but something else. So I dug until I realized that there is not a single way of computing a Channel Binding Token but three which are:.
- tls-server-end-point:
This is the one used when connecting to LDAPS. The overall idea is simple, we extract the TLS certificate:
Create a sha256 hash out of it, concatenate the result with a specific string and hash the entire thing using MD5. This CBT method always return the same exact token value since the certificate shouldn’t change.
- tls-unique:

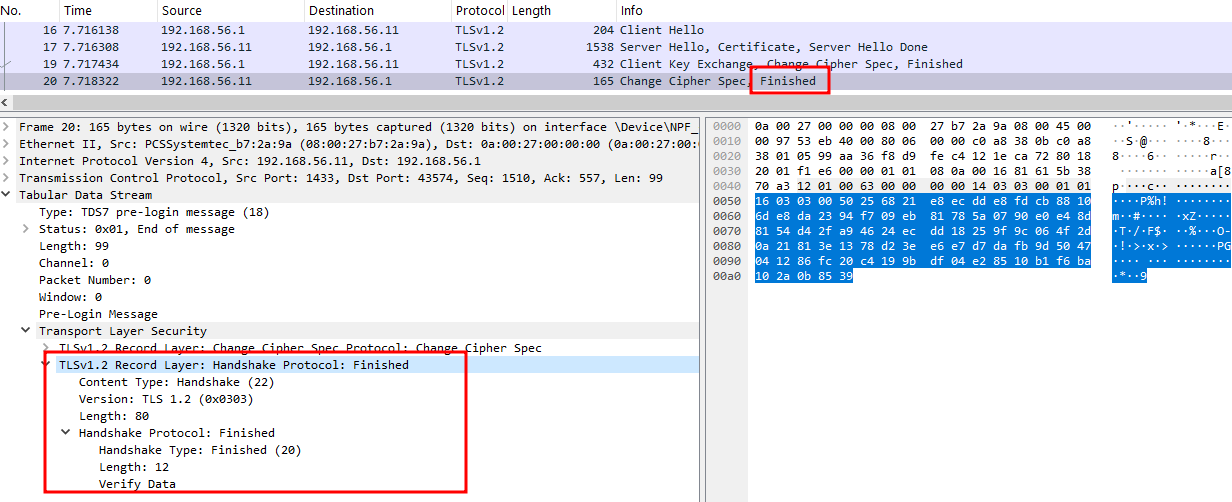

This CBT is computed from the “Finished” message which is sent by the server in the last TLS handshake packet:
- tls-exporter:
This one is actually much harder to explain as it is computed from:
- The master secret (or traffic secret) ;
- The handshake messages ;
- The exporter label ;
- A context value that is a random value.
From all of that, the following formula is used to compute the CBT via the a pseudorandom function (PRF)
tls-exporter = PRF(master_secret, label, context_value, length)
As much as I’d love to tell you more about this, it actually goes beyond my own understanding and we won’t need it so let’s just skip it.
At this point we know for sure that SQLCMD.exe does not compute the CBT token via the the tls-server-end-point method as the CBT value does change after each authentication.
That leaves us with two candidates: tls-exporter and tls-unique. Thing is, in the Microsoft universe, the component that is handling all SSL/TLS computation is Schannel (which you might have already used when connecting to LDAP via certificate). And althought Schannel does support SSL 2 and 3 as well as TLS 1.0 to 1.3, it only supports tls-exporter partially which implies that the CBT is computed via the tls-unique mecanism.
All we have to do know, is to find a way to get that value. Easy right… Actually not that easy. Indeed, before I PR’ed Impacket, the toolkit was using PyOpenSSL to handle the TLS layer. That library does not allow us retrieving the tls-unique value. There is simply no way you can retrieve it with that library. However, the standard python SSL library does allow accessing it via a very simple line of code. That means we will have to rewrite the entire TLS stack of the TDS.py script and especially the STARTTLS mechanism. Let’s dig a little bit into how that thing work. Here is the code:
resp = self.preLogin()
if resp['Encryption'] == TDS_ENCRYPT_REQ or resp['Encryption'] == TDS_ENCRYPT_OFF:
LOG.info("Encryption required, switching to TLS")
ctx = SSL.Context(SSL.TLS_METHOD)
ctx.set_cipher_list('ALL:@SECLEVEL=0'.encode('utf-8'))
tls = SSL.Connection(ctx,None)
tls.set_connect_state()
while True:
try:
tls.do_handshake()
except SSL.WantReadError:
data = tls.bio_read(4096)
self.sendTDS(TDS_PRE_LOGIN, data,0)
tds = self.recvTDS()
tls.bio_write(tds['Data'])
else:
break
self.packetSize = 16*1024-1
self.tlsSocket = tls
As I mentionned before, a pre login packet is sent in which the client specifies if it supports encryption or not. If the server supports it (or requires it as well), a TLS tunnel must be created. As such, we need to first create a TLS context:
ctx = SSL.Context(SSL.TLS_METHOD)
Then we initialize the cyphers list we want to use (all of them actually):
ctx.set_cipher_list('ALL:@SECLEVEL=0'.encode('utf-8'))
And finally we build the TLS engine:
tls = SSL.Connection(ctx, None)
tls.set_connect_state()
Once the engine is ready, we need to handle the handshake during which the client and the server determines what TLS version they will use as well as which cyphers:
Finally, we’ll have a fully working TLS engine which we will use to encrypt the data we want to send to the server and decrypt data that we want to read from it. Now if you want a better look at how I handled that you can take a look at the PR. The logic itself is not that complicated but keep in mind that since MSSQL servers do not always support TLS, I had to rewrite part of the entire socket mechanism so that it works with both a TLS context and without it. Overall, the general idea can be summarized with the following schema:
And now here is how we can get the tls-unique value:
self.tls_unique = tls.get_channel_binding("tls-unique")
And finally compute the Channel Binding Token using the almost exact same piece of code that we saw earlier:
def generate_cbt_from_tls_unique(self) -> bytes:
channel_binding_struct = b""
initiator_address = b"\x00" * 8
acceptor_address = b"\x00" * 8
application_data_raw = b"tls-unique:" + self.tls_unique # This was tls-server-end-point before
len_application_data = len(application_data_raw).to_bytes(4, byteorder="little", signed=False)
application_data = len_application_data
application_data += application_data_raw
channel_binding_struct += initiator_address
channel_binding_struct += acceptor_address
channel_binding_struct += application_data
cbt_token = md5(channel_binding_struct).digest()
LOG.debug(f"Computed tls-unique CBT token: {cbt_token.hex()}")
return cbt_token
Enable TLS and Extended Protection on the MSSQL server, launch mssqlclient.py and…
Here is our shell!
5/ Conclusion
Although we now have the ability to connect to even the most hardened MSSQL databases, we’re not done yet. While reviewing the PR, gabrielg5 (thanks for the review, mate — that was really fun!) and I realized that even though tds.py now supports CBT, it still doesn’t handle the latest TDS protocol version (the eighth), which differs from the one we worked on (the seventh).
In fact, version 8 of TDS no longer relies on the STARTTLS mechanism. Instead, it establishes a direct TLS socket to the MSSQL server. This means that, moving forward, we’ll need to develop a tds.py script capable of handling cleartext communication, encrypted communication via in-memory TLS computations, and direct TLS sockets… So yeah, there’s still a lot of work - and headhaches - ahead but It’s really fun to work on!
Happy hacking, folks!
